Unit Weight  (kg) 12
Load Rating  (kg) 800
Duty Cycle  (%) 30
Working Temperature  (°C) -20 to +40
Openings per hour18 (5m gate)
Protection Rating  (IP) X4
Thrust  (N) 260
DC Voltage  (VDC) 24

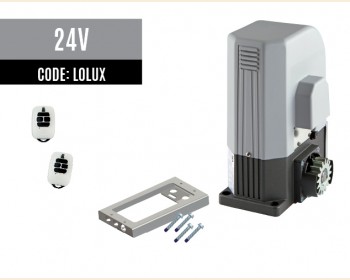

Lolux sliding gate automation

Lolux 24V 800kg

LOLUX IS A RUGGED MOTOR FOR SLIDING GATES. IT COMBINES STURDY CONSTRUCTION WITH RELIABILITY WHICH HAS BEEN TESTED AND CONFIRMED OVER SEVERAL YEARS.
DESIGNED FOR THE AUTOMATION OF SLIDING GATES. LOLUX IS MADE UP OF A MECHANICAL GEAR MOTOR ROTATING THE DRAFT GEAR THAT, IN ASSOCIATION TO A PROPERLY INSTALLED RACK, CONVERTS THE CIRCULAR MOVEMENT OF THE GEAR MOTOR INTO STRAIGHT-LINE MOVEMENT, THUS ALLOWING THE GATE TO MOVE IN ITS OWN SLIDE.
SPECIAL DESIGN FOR TRADE FIRST MOTOR BASES TO MAKE AN INSTALLER’S LIFE EASIER BY MAKING A BASE TO RAISE THE MOTOR TO MATCH THE RACK HEIGHT. HOLES HAVE BEEN PLACED TO ALLOW CABLES TO EXIT OUT THROUGH THE SIDE (NOT SQUASHED UNDER THE BASE). THREADED HOLES USED TO MOUNT THE MOTOR REMOVE THE NEED FOR NUTS. SLOTTED ANCHOR HOLES LET YOU MOVE THE BASE TO GET JUST THE RIGHT POSITION UNDER THE RACK.

$1,400.00

Rodman machine is use for swing gate movement.
